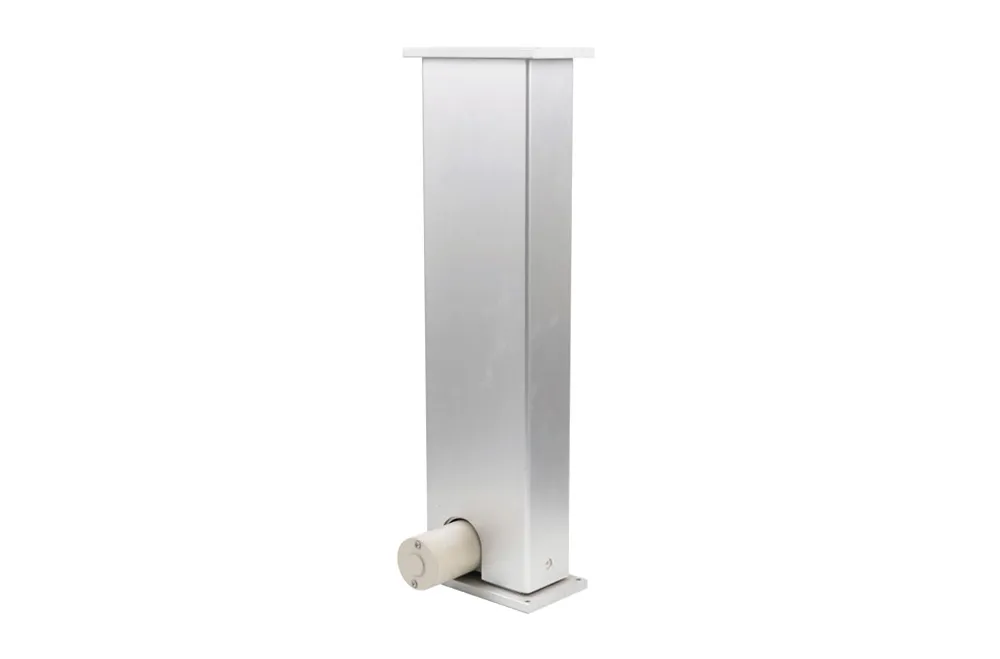

LIFTING COLUMNLifting column is an idea where vertical positioning of substantial loads is required,which designed for variety of application as industrial workstations.LC02-3Loading capacity: max. 2000NAdjustment Speed: 17mm/sMotor voltsge: 24VDC or 12VDCStroke: max. 600mmLimit switch: Built-inOverload protection: integrated in appropriate control-boxFitting dimension: S/2+200mmColor: light greyDuty Cycle: 2/18min.or10%,max.5switching cycles per minute
Send Inquiry

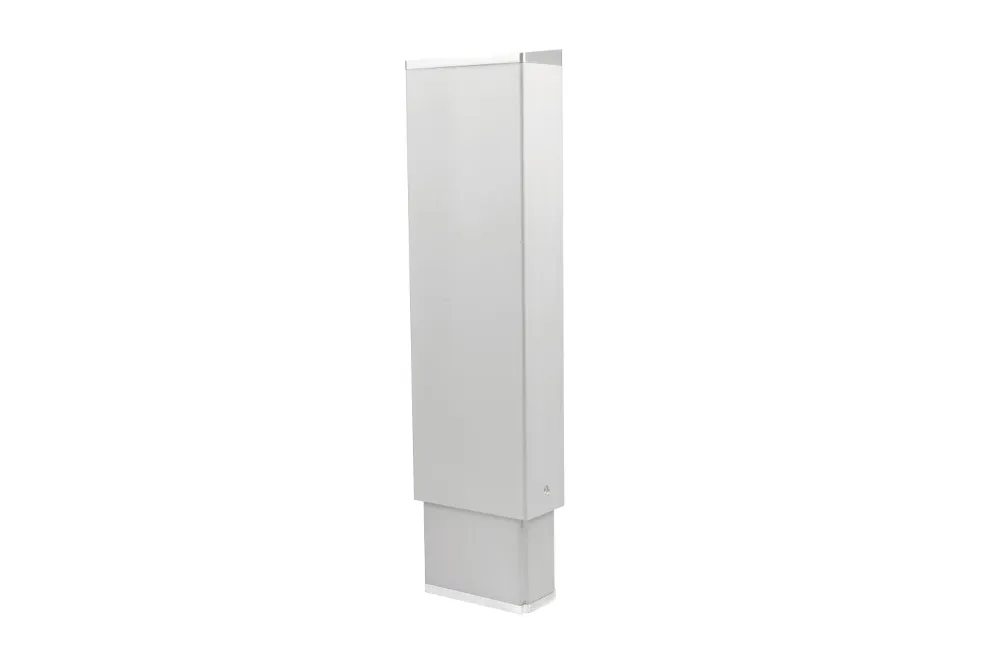

LIFTING COLUMNLifting column is an idea where vertical positioning of substantial loads is required,which designed for variety of application as industrial workstations.LC02-2Loading capacity: max. 6000NAdjustment Speed: 17mm/sMotor voltsge: 24VDC or 12VDCStroke:max.600mmLimit switch: Built-inOverload protection: integrated in appropriate control-boxFitting dimension: 150mmColor: light greyDuty Cycle: 2/18min.or10%,max.5switching cycles per minute
Send Inquiry

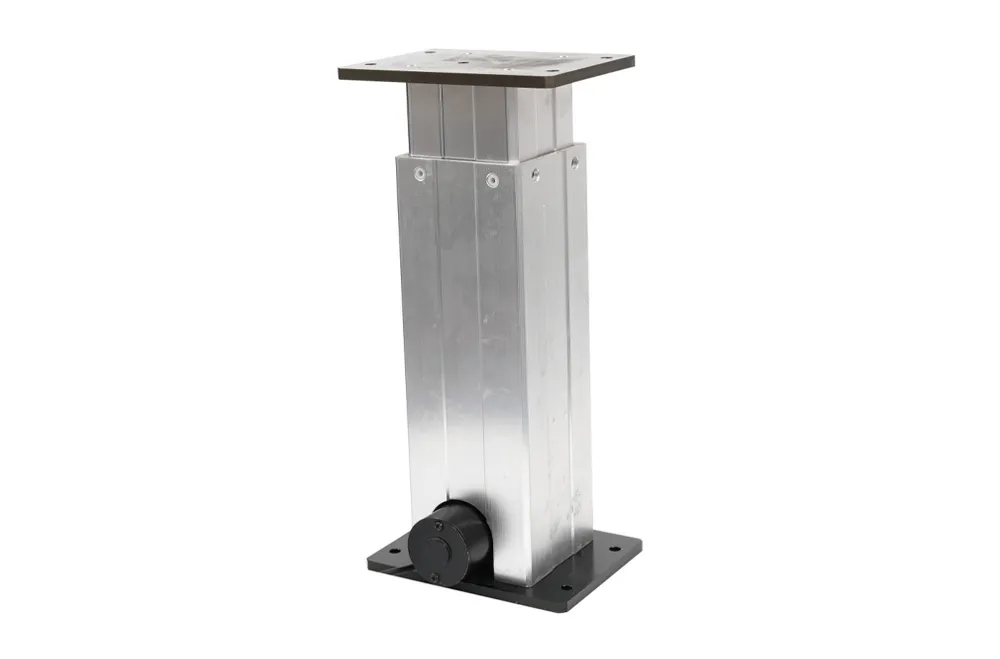

LIFTING COLUMNLifting column is an idea where vertical positioning of substantial loads is required,which designed for variety of application as industrial workstations.LC01ALoading capacity: max. 6000NAdjustment Speed: 17mm/sMotor voltsge: 24VDC or 12VDCStroke: max. 600mmLimit switch: Built-inOverload protection: integrated in appropriate control-boxFitting dimension: 150mmColor: light greyDuty Cycle: 2/18min.or10%,max.5switching cycles per minute
Send Inquiry

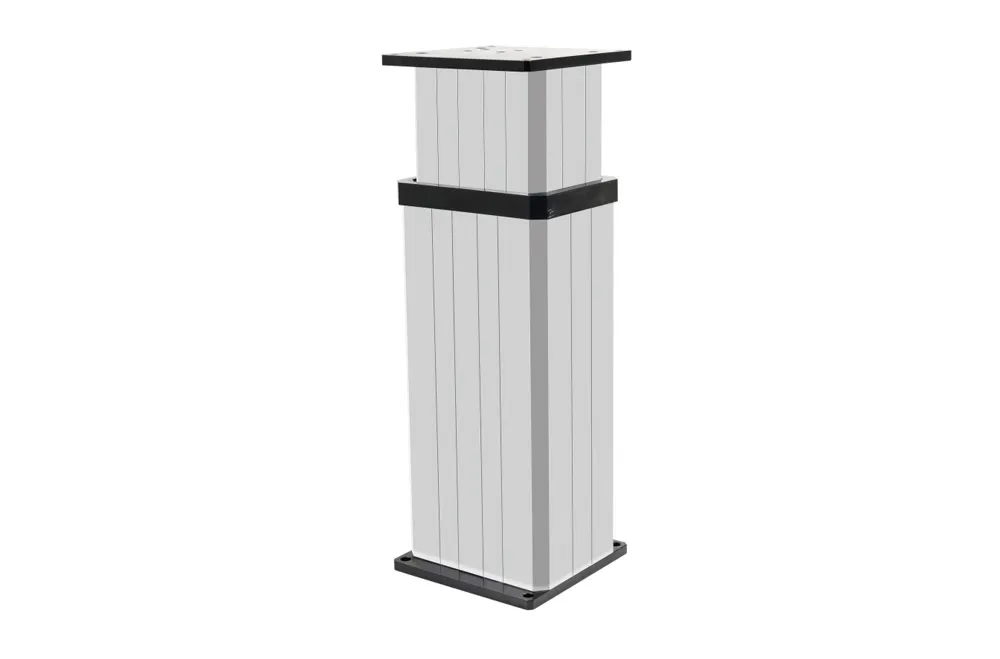

LIFTING COLUMNLifting column is an idea where vertical positioning of substantial loads is required,which designed for variety of application as industrial workstations.LC01Loading capacity: max. 8000NAdjustment Speed: 17mm/sMotor voltsge: 24VDC or 12VDCStroke: max.600mmLimit switch: Built-inOverload protection: integrated in appropriate control-boxFitting dimension: 221mmColor: light greyDuty Cycle: 2/18min.or10%,max.5switching cycles per minute
Send Inquiry
Specializing in the production of linear actuators and microcomputer programmable control systems
