LIFTING COLUMN
Lifting column is an idea where vertical positioning of substantial loads is required,which designed for variety of application as industrial workstations.

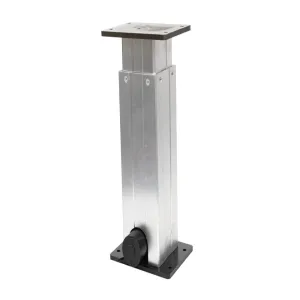

LC01A
Loading capacity: max. 6000N
Adjustment Speed: 17mm/sMotor voltsge: 24VDC or 12VDC
Stroke: max. 600mm
Limit switch: Built-in
Overload protection: integrated in appropriate control-box
Fitting dimension: 150mm
Color: light grey
Duty Cycle: 2/18min.or10%,max.5switching cycles per minute
