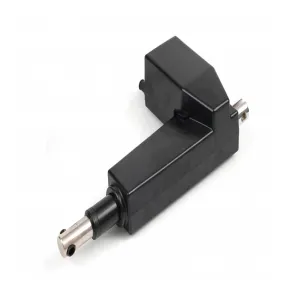

LT22

LINEAR ACTUATORLinear actuator is a powerful, which has lower noise, Max IP grade can reach IP66. It has wideapplication which can be used for medical, home caring furniture and also Industry.LT22Load capacity: max.8000NAdjustment Speed :28mm/sMotor voltsge: 24VDC or 12VDCStorke :max.600mmMounting position: H or V type or 45 degreeColor: Black or GreyLimit switch: Built-inOverload protection: integrated in appropriate control-boxDuty Cycle: 2/18min.or10%,max.5switching cycles per minuteStroke pipe: steel pipeFitting dimension: min.175mm+strokeProtection: max. IP66

Inquiry

E-mail：litop@litopmotion.com

Detailed Description

LINEAR ACTUATOR

Linear actuator is a powerful, which has lower noise, Max IP grade can reach IP66. It has wideapplication which can be used for medical, home caring furniture and also Industry.

LT22

Load capacity: max.8000N

Adjustment Speed :28mm/s

Motor voltsge: 24VDC or 12VDC

Storke :max.600mm

Mounting position: H or V type or 45 degree

Color: Black or Grey

Limit switch: Built-in

Overload protection: integrated in appropriate control-boxDuty Cycle: 2/18min.or10%,max.5switching cycles per minute

Stroke pipe: steel pipe

Fitting dimension: min.175mm+stroke

Protection: max. IP66
